GoniomatAplus新型全自动测角仪是测量和测试光学棱镜、多边形镜、楔块和测角块角度的理想测量仪器。精心的机械光学设计和创新的硬件和软件保证了测量结果的高可靠性和0.4弧秒的高精度。

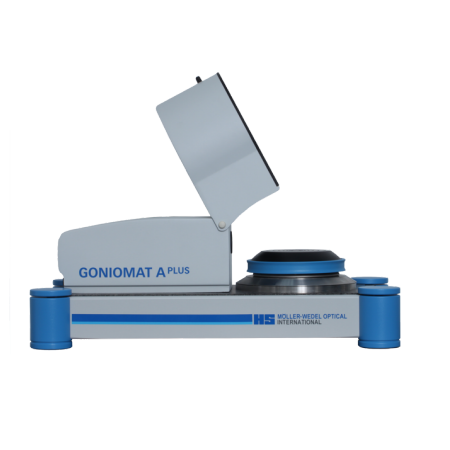

全自动测角仪
Goniomat Aplus
新型全自动测角仪是测量和测试光学棱镜、多边形镜、楔块和测角块角度的理想测量仪器。精心的机械光学设计和创新的硬件和软件保证了测量结果的高可靠性和0.4弧秒的高精度。
特征:
1、与传统测角仪相比,Goniomat A plus全自动测角仪具有一下特征:
2、使用“虚拟倾斜台”节省时间
3、测量数据的集成光学射线追踪分析
4、在多个反射图像的情况下,自动和可靠的图像分离
5、带间隙和免维护驱动和角编码器的精密轴承
6、无需压缩空气
7、具有大测量范围和数码相机的特殊高精度自准直仪
8、自准直图像的三维采集和分析
9、集成激光探测器,便于找到最小的样品表面
10、集成测量单元
11、通过一根USB电缆连接整个系统
12、根据要求扩展不同波长的折射率测量
测量流程:
1、操作人员将样品放在测量台上
2、操作员通过软件菜单选择样本类型(棱镜、多边形等)
3、操作员启动自动测量过程
4、软件通过自动旋转测量台获取所有表面位置
5、软件利用测量数据的光学光线跟踪分析重建棱镜的几何结构
6、软件输出表面角度
测量装置:
Goniomat APlus由带无间隙驱动精密轴承的圆桌、带三点支撑的可互换测量台、角度编码器、带USB端口的电子自准直仪、驱动器和Goniomatik软件组成。软件根据自准直图像及其相应的编码器位置自动计算出准确的表面位置。
技术参数
Model | GONIOMAT A PLUS | |
Art. No. | 241 661 | |
Measuring range | degree | 360 |
Accuracy (multiple measurement)* ** | arcsec | ±0.4 |
Accuracy (single measurement)* | arcsec | ±0.6 |
Accuracy (pyramidal angle measurement)* *** | arcsec | ±1.0 |
Operation temperature | °C | 20 ± 1 |
Minimum surface area (uncoated glass) | mm² | 0.5 |
Maximum sample diameter | mm | 210 |
Maximum sample weight | kg | 10 |
Table diameter | mm | 160/122/85 |
Maximum pyramidal angle | arcmin | 20 |
Autocollimator focal length | mm | 200 |
Autocollimator aperture | mm | 28 |
Base dimensions without PC | mm | 610 x 340 |
Weight | kg | 35 |
PC-Connection | USB 3.0 | |
Power supply | V AC | 100 - 240 |
* according to DIN 1319
** four measurements on 90° rotated encoder positions required; sample surfaces λ/20 p-v, 15x15 mm
*** with the use of a 3-point base
